CDIT-1稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器：
產品品牌：英國LCMsystems（LOADCELL）
產品類別：CDIT-1不銹鋼薄型壓縮輪輻式
產品系列：LCM CDIT-1系列稱重傳感器
產品型號：CDIT-1-100kg, CDIT-1-250kg, CDIT-1-500kg, CDIT-1-1000kg, CDIT-1-2500kg, CDIT-1-5000kg
產品描述：該CDIT-1系列稱重傳感器都被設計為各種測力稱重應用的空間是有限的，CDIT-1是由不銹鋼構成并具有全焊接結構，在惡劣的環境下提供的耐腐蝕性為使用一個高的水平，該系列傳感器可與范圍涵蓋0100公斤，以0-5000千克，有許多應用相適應的CDIT-1，包括受限制高度稱重應用，一般測力和印刷機校準。
英國LCMsystems CDIT-1稱重傳感器特點
▲范圍100到5000公斤
▲低高度/ profile文件
▲不銹鋼工程
▲環保IP67標準密封
英國LCMsystems CDIT-1稱重傳感器技術參數
|
Rated Load (FSO)
|
100, 250, 500, 1000, 2500, 5000 kg
|
|
Overload Range
|
150% FSO
|
|
Ultimate Breaking Load
|
> 300% FSO
|
|
Output
|
2mV/V (±0.2%)
|
|
Zero Balance
|
<±1% FSO
|
|
Non-Linearity
|
≤±0.2% FSO
|
|
Non-Repeatability
|
≤±0.05% FSO
|
|
Excitation Voltage
|
10vdc recommended (18vdc maximum)
|
|
Input Resistance
|
400Ω ±20Ω
|
|
Output Resistance
|
350Ω ±2Ω
|
|
Insulation Resistance
|
>5GΩ @ 50vdc
|
|
Compensated Temperature Range
|
-10 to +40 °C
|
|
Operating Temperature Range
|
-20 to +70 °C
|
|
Storage Temperature Range
|
-20 to +80 °C
|
|
Zero Temperature Coefficient
|
≤±0.003% FSO/°C
|
|
Span Temperature Coefficient
|
≤±0.003% FSO/°C
|
|
Environmental Protection Level
|
IP67
|
|
Electrical Connection
|
Glanded PVC cable - 3 metres long
|
|
Weight (load cell only)
|
130 grams (200 grams for 3500kg and 5000kg
|

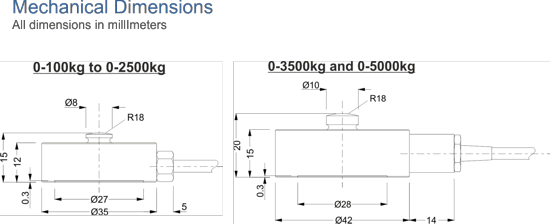

英國LCMsystems CDIT-1稱重傳感器技術尺寸
Ranges 100 to 5000kg
Low height/profile
Stainless Steel construction
Environmentally Sealed to IP67
The CDIT-1 series of Load Cells have been designed for a wide range of force measurement and weighing applications where space is limited.
The CDIT-1 is constructed from stainless steel and has a fully welded construction, offering a high level of corrosion resistance for use in harsh environments.
This range of load cells is available with ranges covering 0-100kg to 0-5000kg.
There are many applications suited to the CDIT-1, including restricted height weighing applications, general force measurements and press calibration.
如果您對CDIT-1稱重傳感器現貨、價格、產品資料、圖片、貨期、發貨方式、英國LCMsystems CDIT-1稱重傳感器技術參數有什么疑問，請聯系我們中國正式一級代理獲取英國LCMsystems稱重傳感器最新信息，歡迎來電咨詢專業負責原裝進口英國LCMsystems產品工程師：楊帆
|
TEL：020-22157650
FAX：020-39133900
E-MAIL：[email protected]
ADD：廣州市南沙區東涌鎮吉祥東路6號768
